Led Ufo Highbay Hb202 Series
Product Feature
1.High performance and reputable brand led chips and driver
2.Clear polycarbonate lens with no risk of lamp breaking for safe industry applications
3.Optimized aluminum alloy housing design for superior thermal management
4.Instant light up with no warm up time
5.No cool down needed before restart
6.High mechanical impact resistance and ingress protection rating
7.Compact in size and easy for transportatio

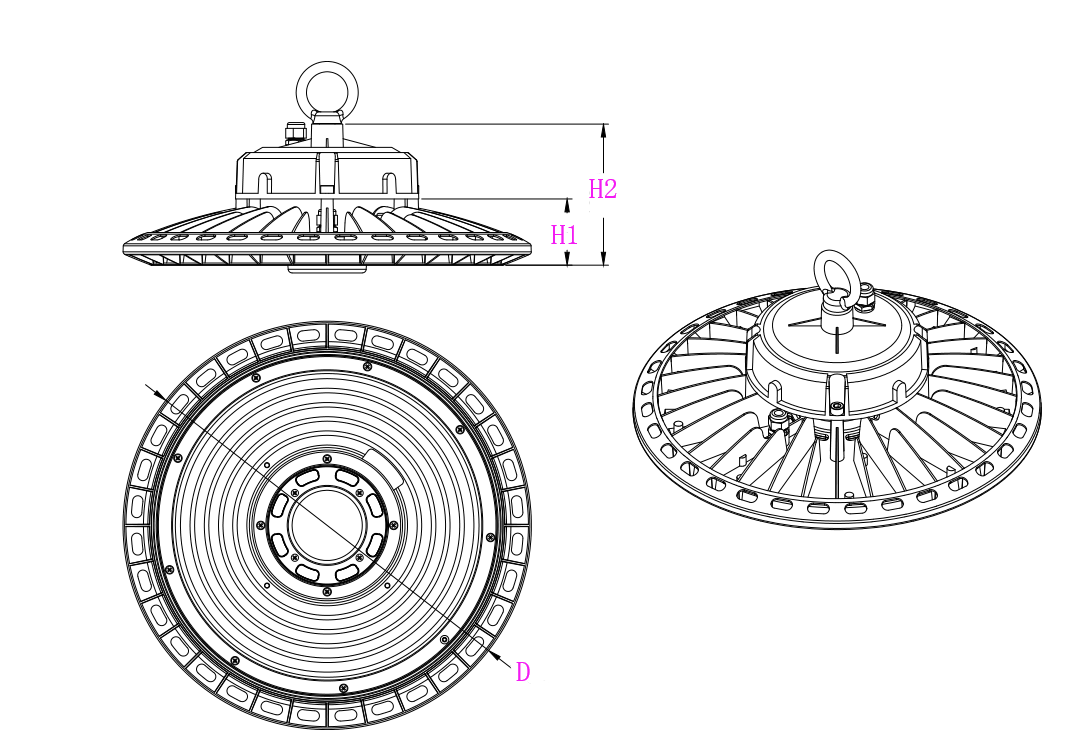

Product Dimensions
|
MODEL |
H1(mm) |
H2(mm) |
D(mm) |
|
TQ-HB202 100W |
47 |
114 |
270 |
|
TQ-HB202 150W |
51 |
122 |
316 |
|
TQ-HB202 200W |
60 |
130 |
340 |

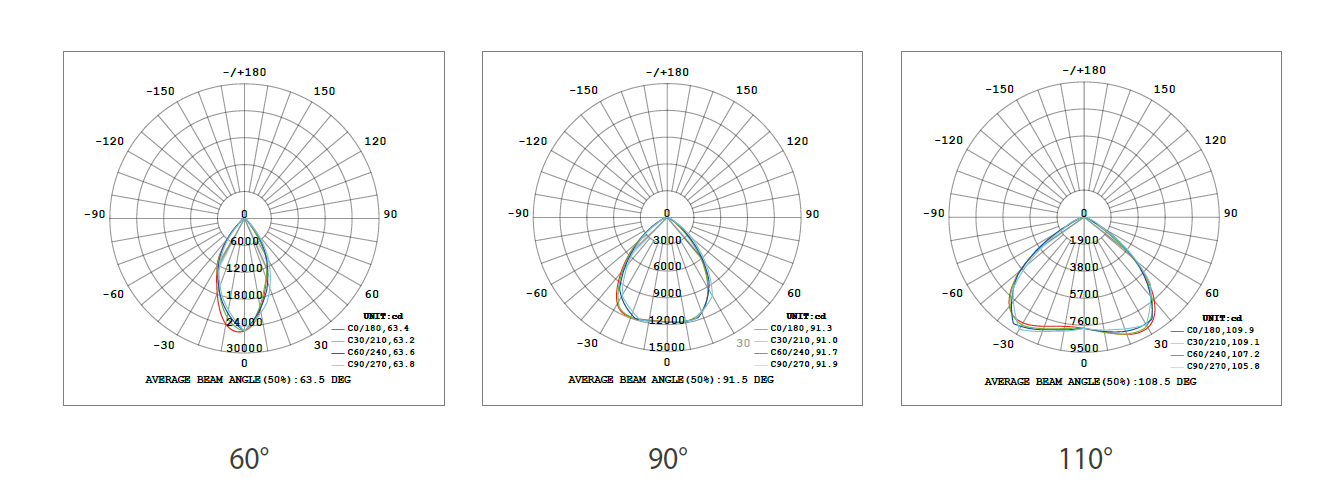

Photometric

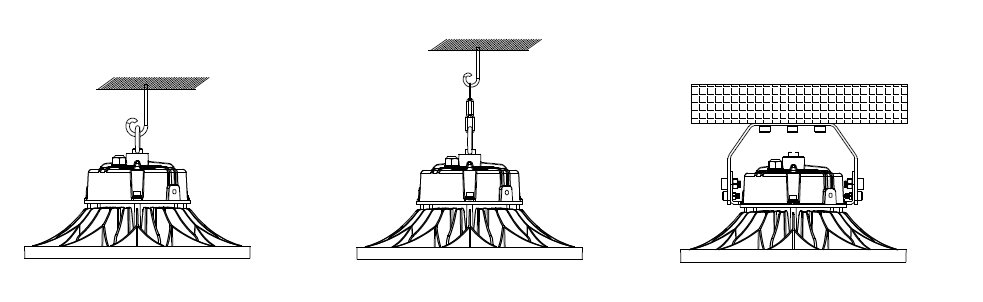

Installation Methods
Specification
|
Model |
TQ-HB202 100W |
TQ-HB202 150W |
TQ-HB202 200W |
|
Power |
100W |
150W |
200W |
|
LED |
SMD 2835 |
||
|
LED QTY |
240 PCS |
360 PCS |
480 PCS |
|
Lumen Eficiency |
150 LM/W |
||
|
CCT |
3000K/4000K/5000K/5700K/6500K |
||
|
CRI |
70 or 80 |
||
|
Beam Angle |
60/90/120 |
||
|
Driver |
ES/SOSEN/LIFUD/ZHIHE |
||
|
Input Voltage |
85-265V AC 50/60 HZ |
||
|
Dimming |
Optional |
|
Sensor |
Optional |
|
IP Rate |
IP65 |
|
Working Temp. |
-30 – 40 °C |
|
Certificate |
CE ROHS ISO9001 |
|
Warranty |
5 years |
Packing Information
|
MODEL |
QTY/CTN |
CTN SIZE(mm) |
N.W(KGS) |
G.W(KGS) |
|
TQ-HB202 100W |
1 |
290*290*150 |
2.5 |
3 |
|
TQ-HB202 150W |
1 |
340*340*160 |
3.5 |
4 |
|
TQ-HB202 200W |
1 |
360*360*170 |
4.5 |
5 |
